Automotive Testing Expo

See the latest in Disk Brake Wear Analysis. The Automotive Testing Expo in Novi, Michigan, from October 22-24, 2024. Check out Capacitec at Booth 6044.


Register For A Free Pass

Capacitec Gap & Displacement Measuring Systems

Master the most challenging applications on the planet.

Industries

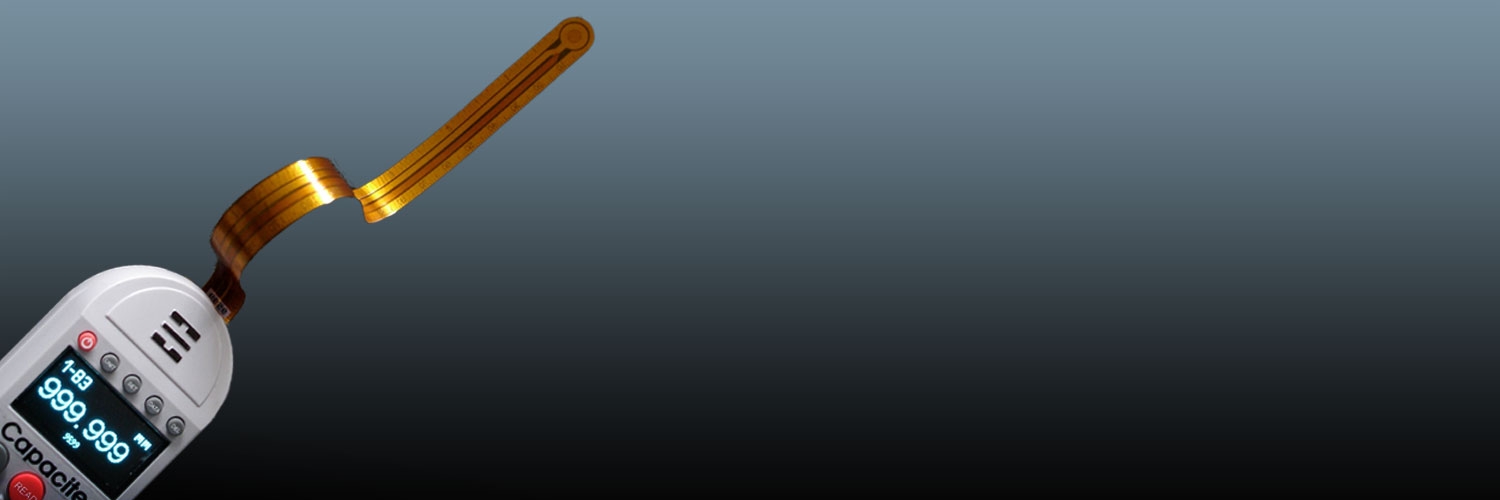

Gapman® Gen3 Thin Gap Portable Digital Feeler Gage

High-precision, non-contact gap sensing tool, offering dramatic improvement over traditional feeler gages by eliminating operator subjectivity. Fast insertion into gaps down to 200 micrometers (0.008") with integrated 10,000-point data logger.

Gapman® Portable Feeler Gage

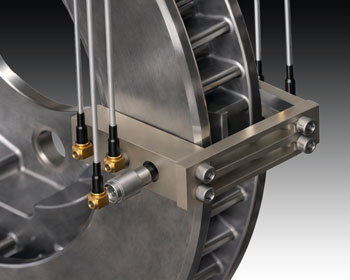

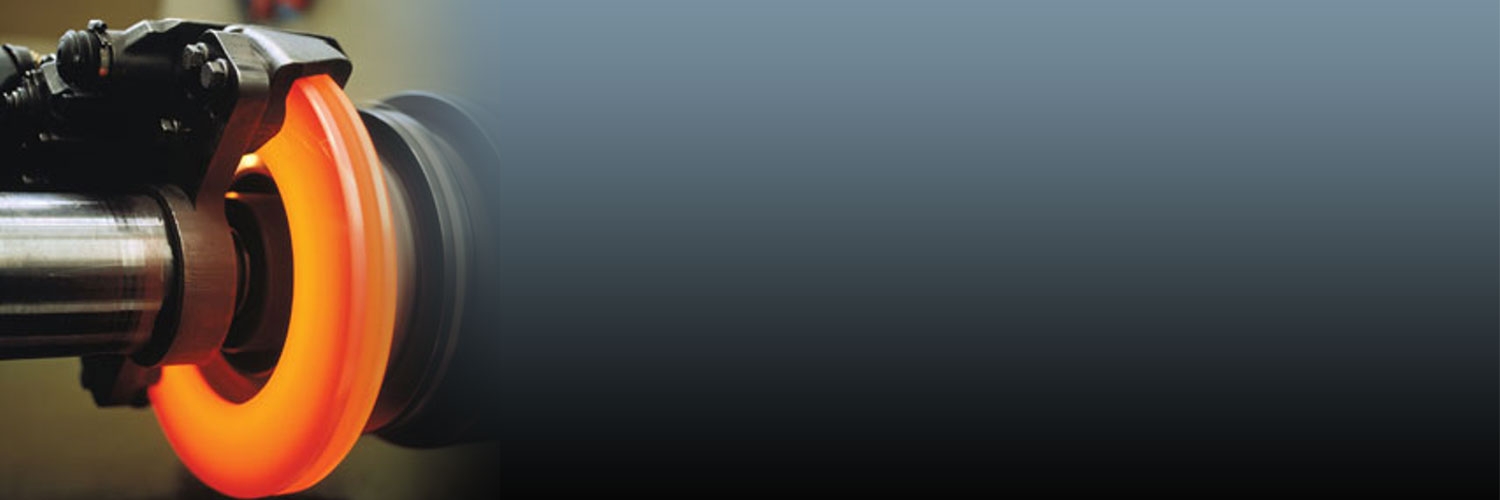

Six Sensor Disk Brake Wear Analysis

Capacitec is the world leader in the manufacture of small, high temperature (up to 1600°F  871°C) capacitive non-contact displacement sensors and systems. Braking Systems Suppliers and Testing Laboratories in the US, Europe and Asia, rely on Capacitec’s line of specialized non-contact capacitive Disk Brake Rotor Wear custom solutions.

Brake Analysis Systems

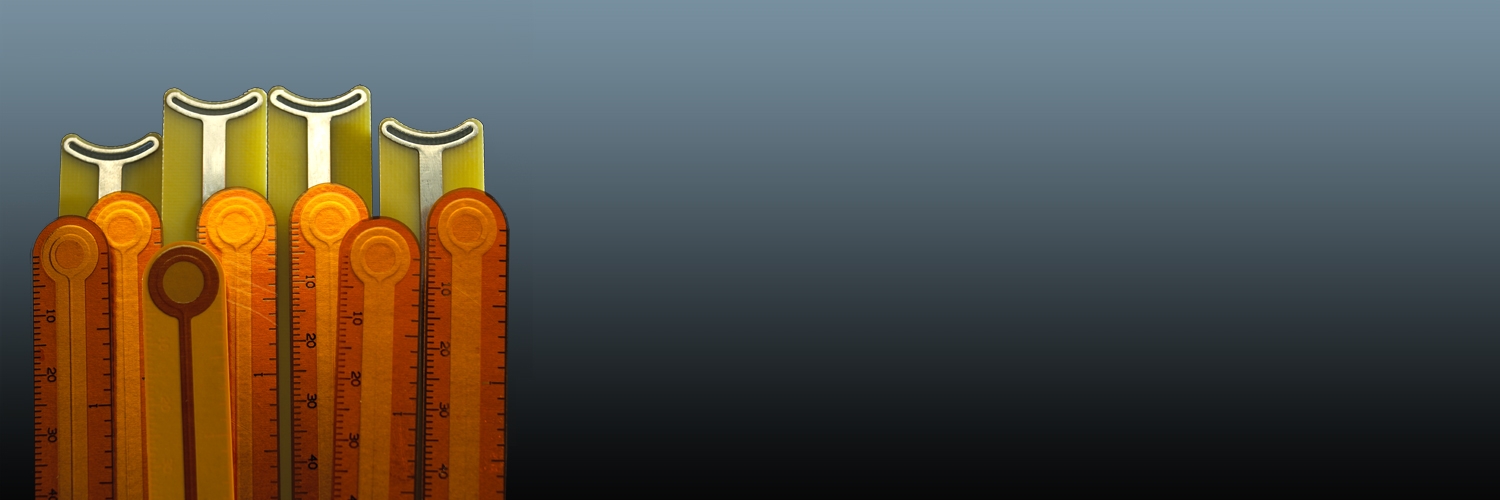

Gap Sensors & Portable Gapman® Gen4

Measure single point gaps in any assembly with conductive materials including the new carbon composite (CFRP). Reach into spaces as small as 150 micrometers (0.006”).

Gap Measurement Systems

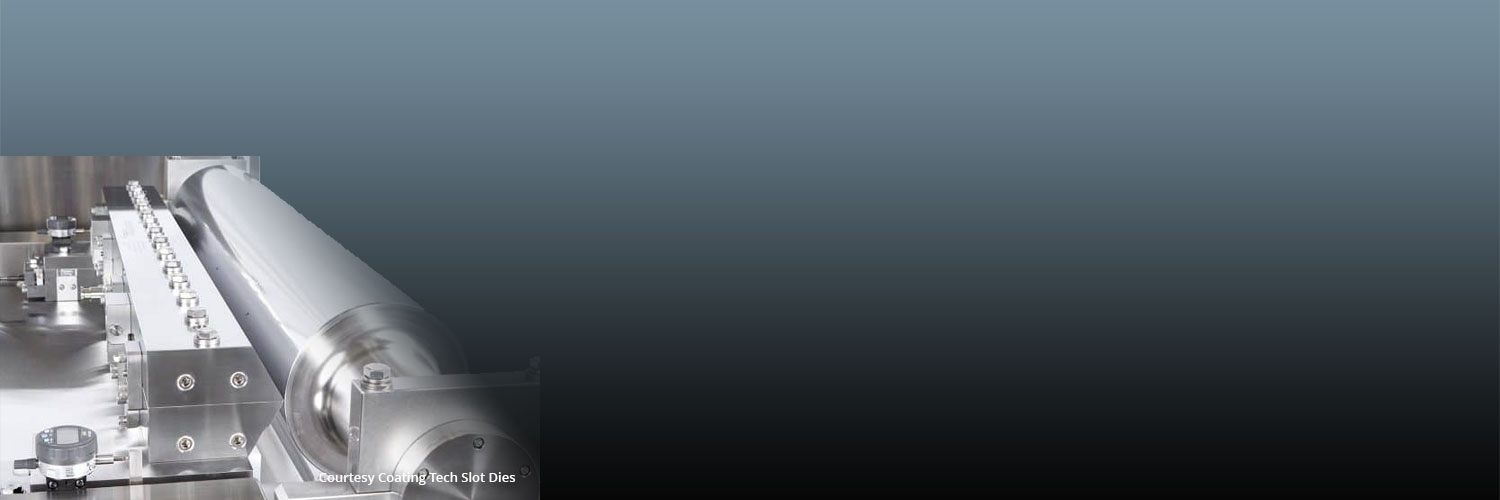

Slot Die Coating and Extrusion Die Gap Measurements

Since the mid 1980's Capacitec has been supplying non-contact capacitive displacement sensors and systems to the Coating and Extrusion markets. Our Slot Die Coater Gap Measurement Systems are now the industry standard. This allows operators to achieve repeatable coater gap uniformity better than 10 microinches (0.25 microns) with very thin flexible gap sensor wand that can sustain temperatures of up to 500°F (260°C).

Slot Die Coating

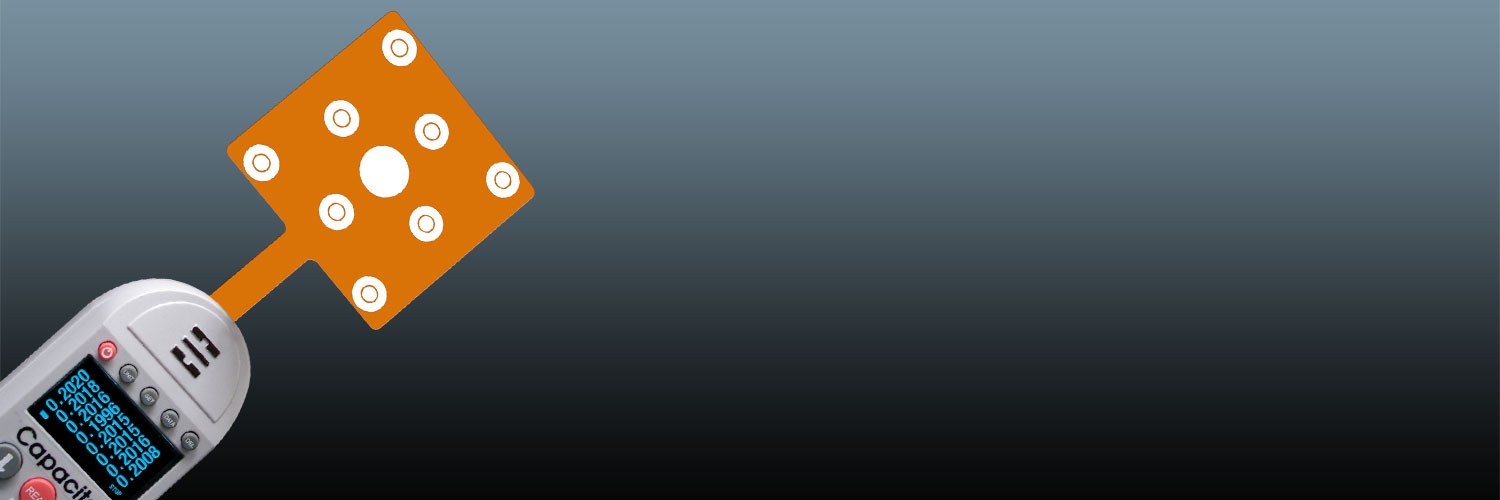

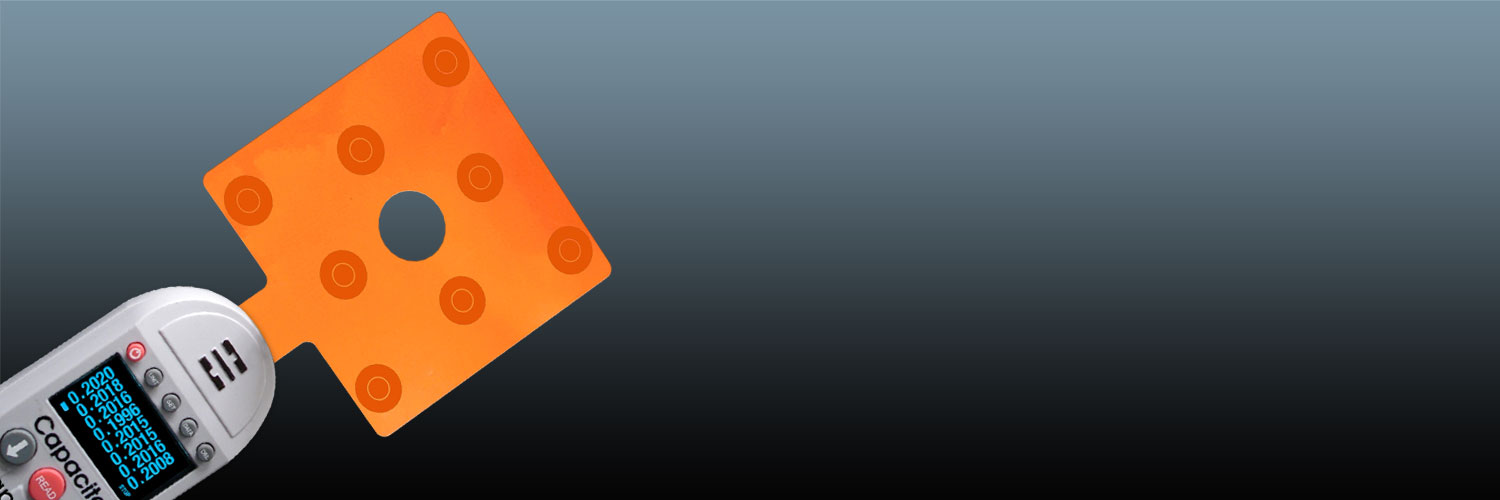

Gapman® Gen4 Offers Real Gap Solutions

Capacitec’s breakthrough high-precision, multi-point, non-contact gap mapping tool, offering dramatic improvement over traditional single point systems, eliminating operator positional subjectivity. Fast insertion into gaps down to 200 micrometers (0.008") with integrated battery and Bluetooth.

Aerospace Gap Measurement Tools

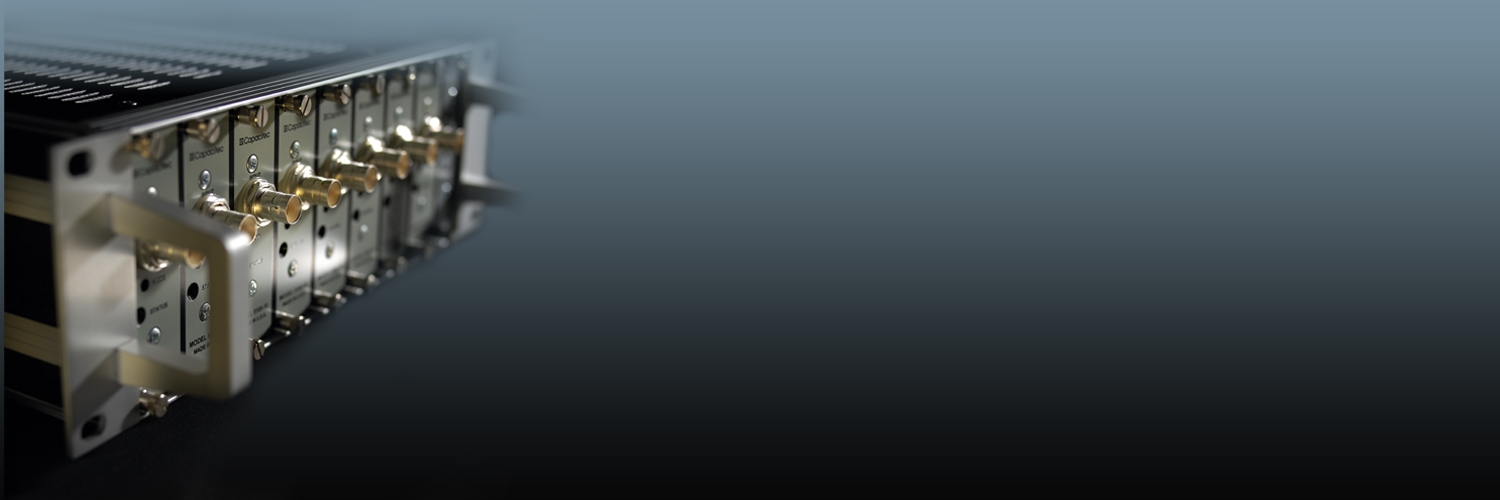

Tough Mini Modular Capacitive Amplifiers & Non Contact Sensors

Mini modular Capteura® amplifiers have maximum displacement range with the industries smallest sensor sizes. Capacitec specializes in very long Gap Wands with lengths to ~2 meters (80.0”).

Displacement Sensing Systems

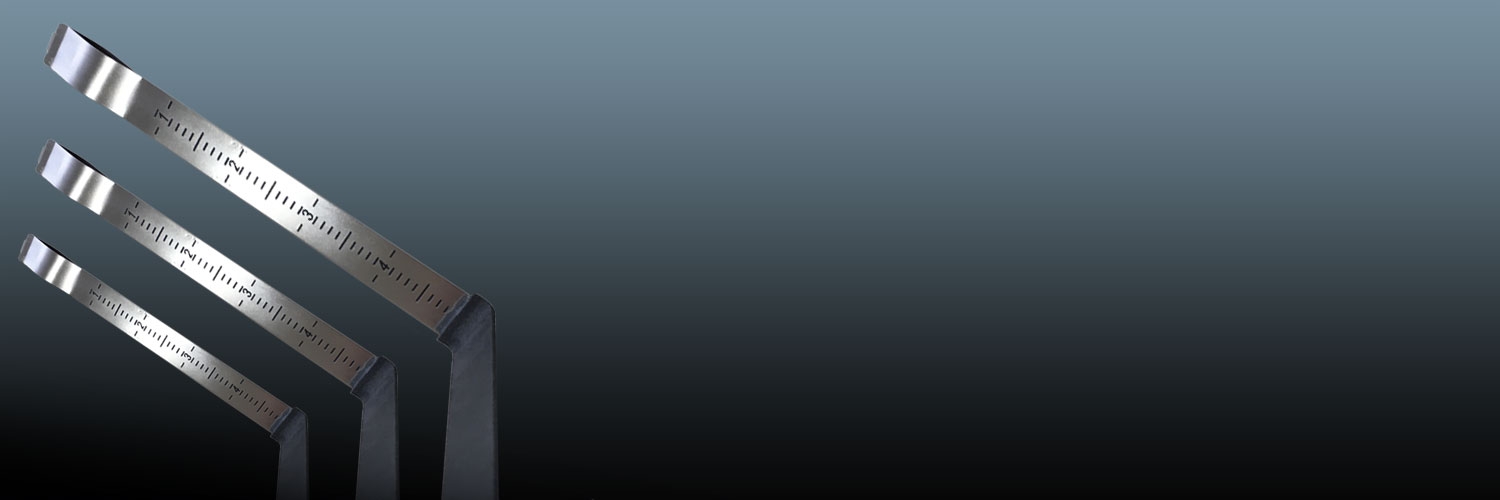

Spring Contact Gap Sensors

Straight, 30° or 90° bend Gapman Wands deliver precision digital gap measurements down to 330 micrometers (0.013") with insertion lengths up to 450 mm (17.7") where one or both target surfaces are non-conductive.

Spring Contact Wands

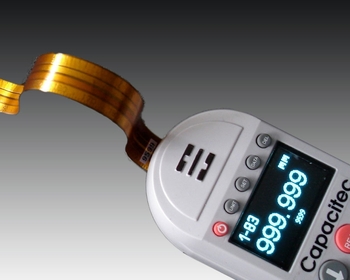

Gapman Gen 3 high-precision, non-contact portable thin gap electronic feeler gage

Gapman®Gen3

Thin Gap Electronic Feeler Gauge

The Gapman®Gen3, a "next generation" high-precision, non-contact portable thin gap electronic feeler gage. Among the main design enhancements of the "next generation" Gapman®Gen3 are higher resolution output (0.00001"/ 0.254 µm) with ±0.05% FS (12.7 µm) typical accuracy with a GPD-5F wand; 10,000 data point logging and storage capabilities; battery life doubled (now 22 hours minimum with 3 AA lithium batteries); and simplified PC user interface.
Learn more
Gapman Gen3 Brochure
GapmanGen3 Aerospace Applications Article
Mind the gap – Aerospace Manufacturing

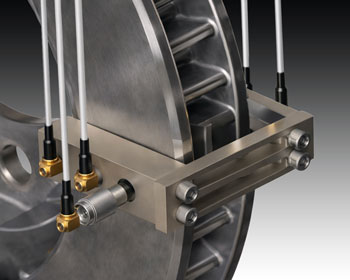

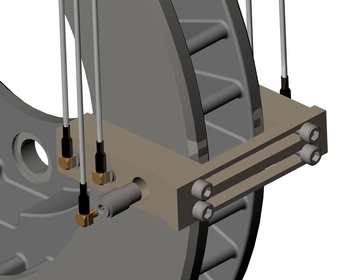

Disc Brake Thickness Variation Analysis

Disc Brake Thickness Variation Analysis

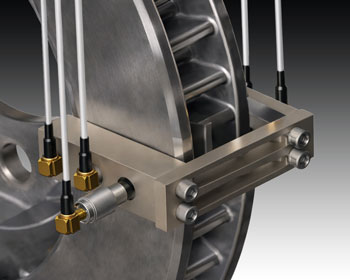

Six Sensor Disk Brake Wear Analysis

Driven by Automotive Manufacturers, Disc Braking Systems Suppliers and Testing Laboratories in the US, Europe and Asia, Capacitec has developed a new line of specialized non-contact capacitive Disk Brake dimensional analysis sensors. The new model HPC-150C-H-IC-00 sensor assembly combines the benefits of small size and high temperature 750°F (400°C) operation. Learn more
Capteura® Series 200 Brochure

High Temperature Cryogenic

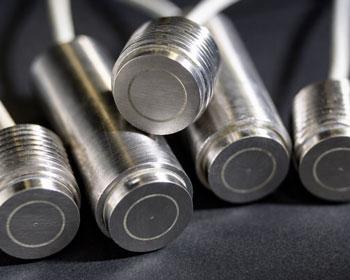

Very High Temp Sensors

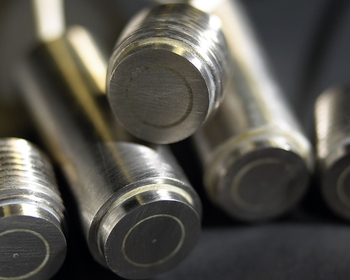

871°C Non-Contact Displacement Sensors

Capacitec is the world leader in the manufacture of small, high temperature (up to 1600°F  871°C) capacitive non-contact displacement sensors and systems.   Learn More



Introducing 508-SW

Multiple Channel Switching Amplifier

The 508-SW is a smart condensed multi-channel displacement, gap and bore measurement amplifier at about half the cost of the current amplifier. This new Capteura® multiple channel switching signal conditioner does not sacrifice the very high linearity & stability advancements of the real time system.  Learn More
Capteura® 508-SW Brochure
